Viewing Run History and Analytics

Bolt provides comprehensive tools for monitoring and analyzing your dbt™ schedules. This guide will walk you through viewing run logs, understanding the Bolt Schedules list, and exploring detailed analytics for your schedules.

Estimated completion time: 15 minutes

Prerequisites

What you'll learn

In this guide, you'll learn how to:


1. Bolt Schedules Overview

The Bolt home screen displays a summarized analysis of all your configured schedules, both UI-based and YAML-based. Here's what you can see at a glance:

Field
Description
Example

Name

Name of the schedule

hourly scheduled run

Status

Current status of the schedule

Success

Owner

The schedule's owner (if configured)

john@acme.com

Cron Description

Human-readable description of the schedule's run time (UTC)

At 00:00, every day (UTC)

Cron Configuration

The cron syntax for the scheduled run

@daily

Last Run

Date and time of the most recent execution

August 22, 2024 at 5:00 PM PDT

Next Run

Anticipated date and time for the next execution

August 23, 2024 at 5:00 PM PDT

Until Next Run

Time remaining until the next scheduled runT

20 hours, 38 minutes, 52 seconds

Trigger Type

How the schedule is triggered (On schedule, On Run Completion)

standard

On Completion Configuration

Details of On Run Completion configuration (if applicable)

schedule base run in workspace irishtrooper on status passed, failed

2. Bolt Schedule Detail Views

The Bolt Schedule Detail View provides in-depth insights into individual dbt™ schedules, including configuration, run history, logs, and artifacts.

How to to access:

  1. Schedules Overview: Navigate to the main page displaying all your configured schedules.

  2. Schedule Selection: Click on a specific schedule name to view its detailed information and run history.

2.1: Run History

In the Run History section, you can view all executions of a specific scheduled run:

Field
Description
Example

Status

Status of the specific runID

Success

Trigger

If the runID was manually triggered manually or automatically

Manual from john@acme.com

Branch and commit

The branch name and commit SHA used when running the schedule

main #ce34f

Last Run

Date and time of when the runID was executed

last month

Duration

How long the run took to complete

25 seconds

RunID

Unique identifier of the run

13403

2.2: Logs and Artifacts

Every time a dbt™ command executes in a Bolt schedule, dbt Core™ generates a set of artifacts like manifest.json, catalog.json, run_results.json, and sources.json. These tools help analyze, troubleshoot, and optimize your Bolt schedules.

How to access:

  • Click on a specific run from a Bolt schedule's Run History

  • Scroll down to Logs and Artifacts section

Let's explore the key components:

2.3: Run Logs

By clicking on a specific command executed in your bolt schedule (e.g., dbt run) you'll have access to various run logs:

Run Log Type
Description
Use Case

Summary Logs

DinoAI-generated overview of dbt command execution, including warnings and potential fixes

Quick assessment of run health and identification of common issues

Console Logs

Detailed, chronological record of all operations

Detailed troubleshooting and understanding of the execution process

Debug Logs

Extensive details including system-level operations and dbt™ internals

In-depth problem solving and performance tuning for complex issues

2.4: Source Freshness

When your Bolt Schedule contains the command 'dbt source freshness', Paradime will provide the state of each of your sources. This helps you determine the status of your source data and whether it aligns with your SLAs.

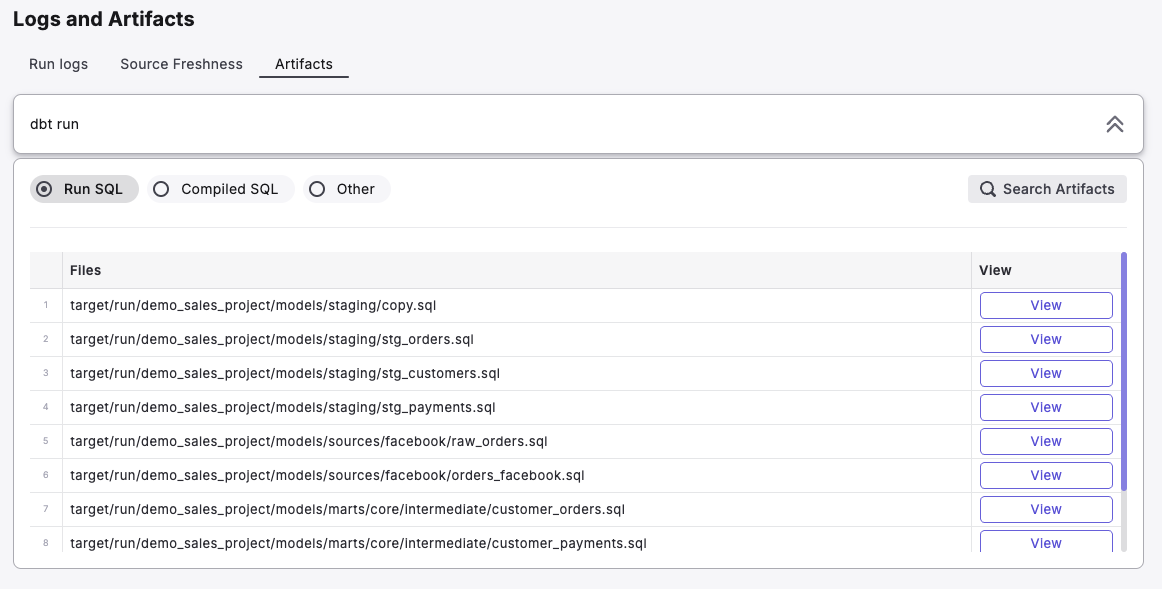

2.5: Artifacts

During a Bolt schedule execution, dbt™ generates various files including run SQL files, compiled SQL files, manifest files, and JSON files. These artifacts provide insights into what was executed and how, enabling you to analyze the output of your dbt runs in detail.



Summary

You've learned how to navigate the Bolt Schedules overview, access detailed information about specific schedules, and interpret run history, logs, and artifacts. This knowledge will help you effectively monitor and analyze your dbt™ schedules, enabling you to optimize your data workflows and quickly troubleshoot any issues.

Next, we'll explore how to set up notifications for your Bolt schedules, ensuring you stay informed about the status of your data pipelines.
